SMART Chimney System - Leier

Short description

The most compact insulated chimney in the Leier range — about 0.1 m² of floor area at Ø160. For small houses and interior installation.

Full description

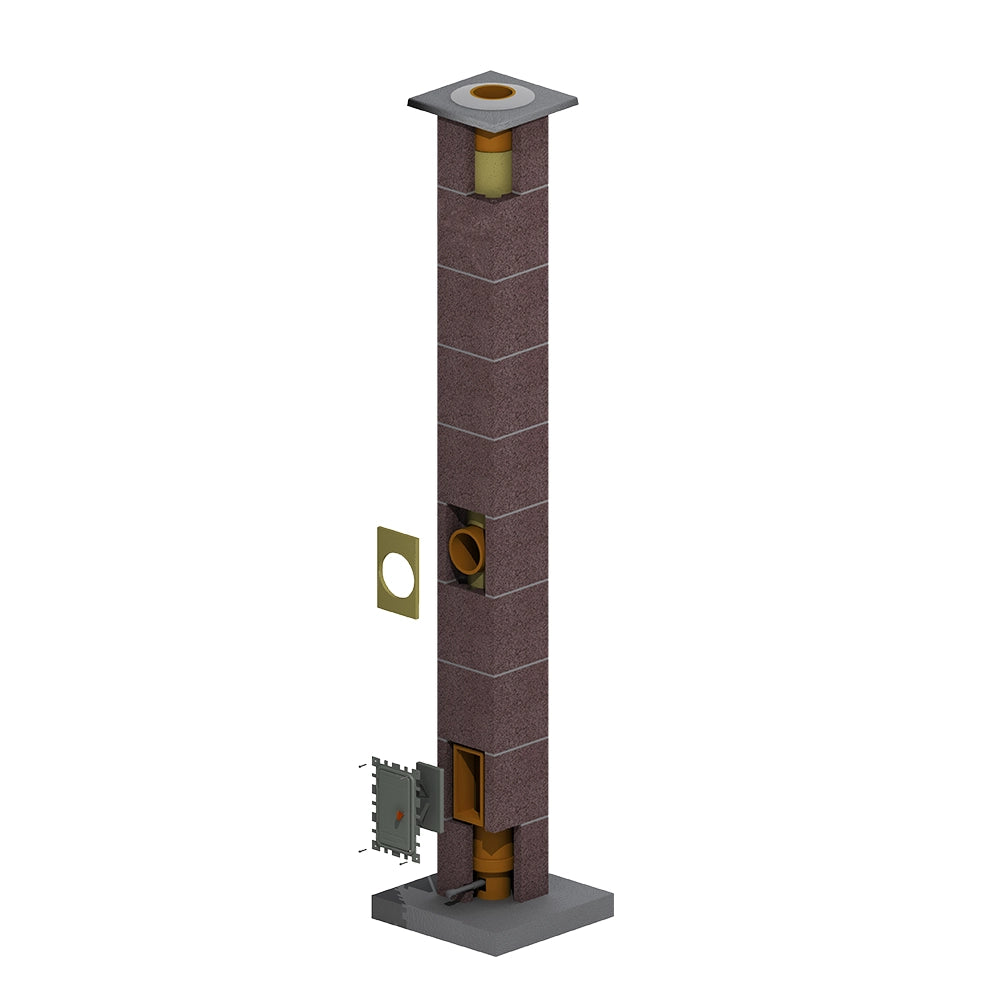

SMART is LSK stripped to what a wood stove actually needs. Same three-part build — fireclay liner, insulation, concrete outer block — but the outer block is as small as it can be: 32 x 32 cm at Ø160, against 35 x 35 for the equivalent LSK.

That difference sounds trivial on a drawing and is not, in a small house. A chimney runs through every floor, so a few centimetres on each side is floor area lost on every storey. At Ø160 the whole thing takes about 0.1 m² of the room.

The trade-off is scope. SMART is for solid fuel with higher flue gas temperatures — wood stoves, fireplaces, wood boilers. For gas, oil or a condensing boiler, the system is MULTIKERAM or MULTIKERAM LAS.

Key benefits

• Smallest outer dimensions in the range — about 0.1 m² at Ø160
• Insulated: fireclay liner, insulation board, concrete outer block
• Designed for interior installation in small houses
• Three diameters: 160, 180 and 200 mm
• Resistant to high flue gas temperatures
• Three components per linear metre, dry and quick to build

Technical specifications

• Product type: insulated ceramic chimney system
• Brand: Leier
• Range: SMART
• Flue diameters: 160, 180 and 200 mm
• Outer dimensions: 32 x 32 cm (160), 34 x 34 cm (180), 36 x 36 cm (200)
• Weight: 88–99 kg per linear metre, depending on diameter
• Consumption: 3 pieces per linear metre of each component
• Use: wood stoves, fireplaces and wood boilers
• Sold by: linear metre
• Delivery: made to order, subject to supplier stock

Recommendation

Solid fuel only. If there is any chance of switching to gas or a condensing boiler later, the saving in floor area is not worth the rebuild — take MULTIKERAM instead. Size the flue from Leier's sizing diagram, using the appliance output and the useful height of the chimney. Order the full height in one go, including the section above the roof, and add the terminal set.
