LSK Chimney System - Leier

Short description

Insulated ceramic chimney system for solid fuel, in six flue diameters from 140 to 300 mm. Sold by the linear metre.

Full description

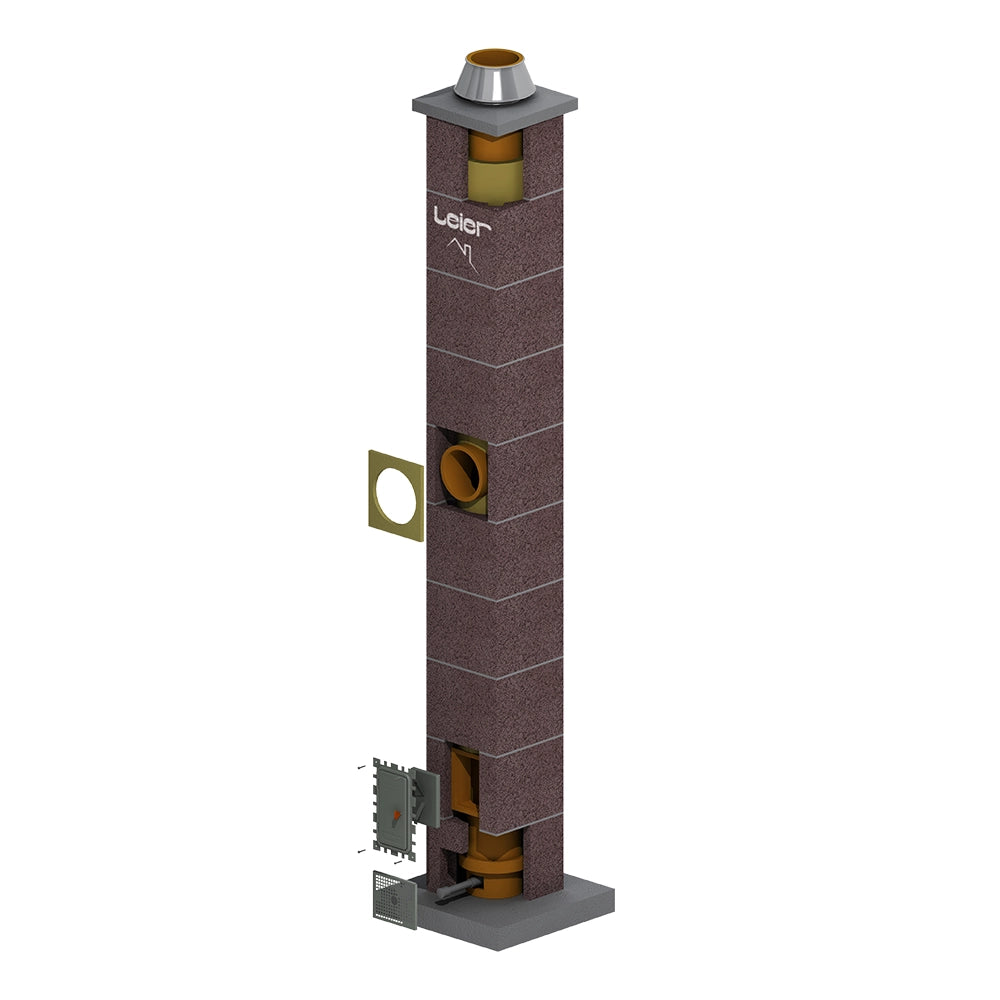

LSK is the standard Leier chimney for a family house. Three parts make up each metre: a fireclay flue liner, a rock wool insulation board around it, and an outer concrete block that carries the load. The insulation keeps the flue gas warm, which is what keeps the draught working and the condensate out of the masonry.

It takes any solid fuel — wood, coal, pellets, mixed-burner boilers, fireplaces and stoves, whether factory-built or built on site. Where the outer blocks include a ventilation duct, the combustion air can be drawn from outside the building instead of from the room, which matters in a well-sealed house.

The flue diameter is not a matter of preference. It follows from the boiler output, the fuel and the useful height of the chimney — Leier publishes a sizing diagram for exactly this. Too wide a flue cools the gas and kills the draught; too narrow a one chokes the appliance.

Key benefits

• Insulated: fireclay liner, rock wool board, load-bearing concrete outer block
• Six diameters, from 140 to 300 mm
• Any solid fuel — wood, coal, pellets, mixed burners, fireplaces, stoves
• Outer blocks with a ventilation duct can supply combustion air from outside
• Resistant to high flue gas temperatures and to acid condensate
• Three components per linear metre, dry and quick to build

Technical specifications

• Product type: insulated ceramic chimney system
• Brand: Leier
• Range: LSK
• Flue diameters: 140, 160, 180, 200, 250 and 300 mm
• Outer dimensions: 35 x 35 cm (140 / 160), 40 x 40 cm (180 / 200), 48 x 48 cm (250), 57 x 57 cm (300)
• Weight: 118–229 kg per linear metre, depending on diameter
• Consumption: 3 pieces per linear metre of each component
• Use: solid fuel boilers, stoves and fireplaces
• Sold by: linear metre
• Delivery: made to order, subject to supplier stock

Recommendation

Size the flue from Leier's sizing diagram, using the boiler output and the useful height of the chimney — the vertical distance from the appliance connection to the top. The diagram covers a single wood boiler on one flue; connecting two appliances to the same flue needs a separate calculation. Order the full height in one go, including the part above the roof, and add the terminal set. A chimney is not a place to economise: the cost difference between two diameters is small next to the cost of rebuilding one that does not draw.
