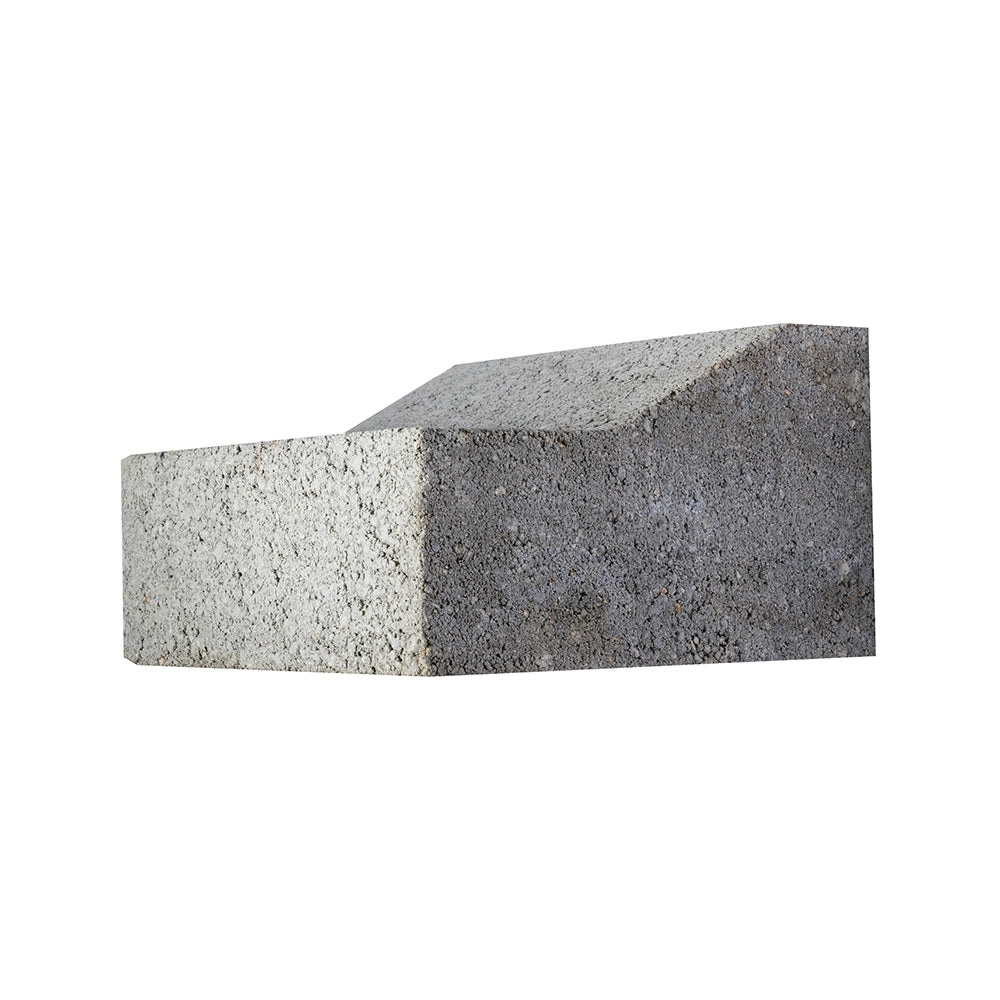

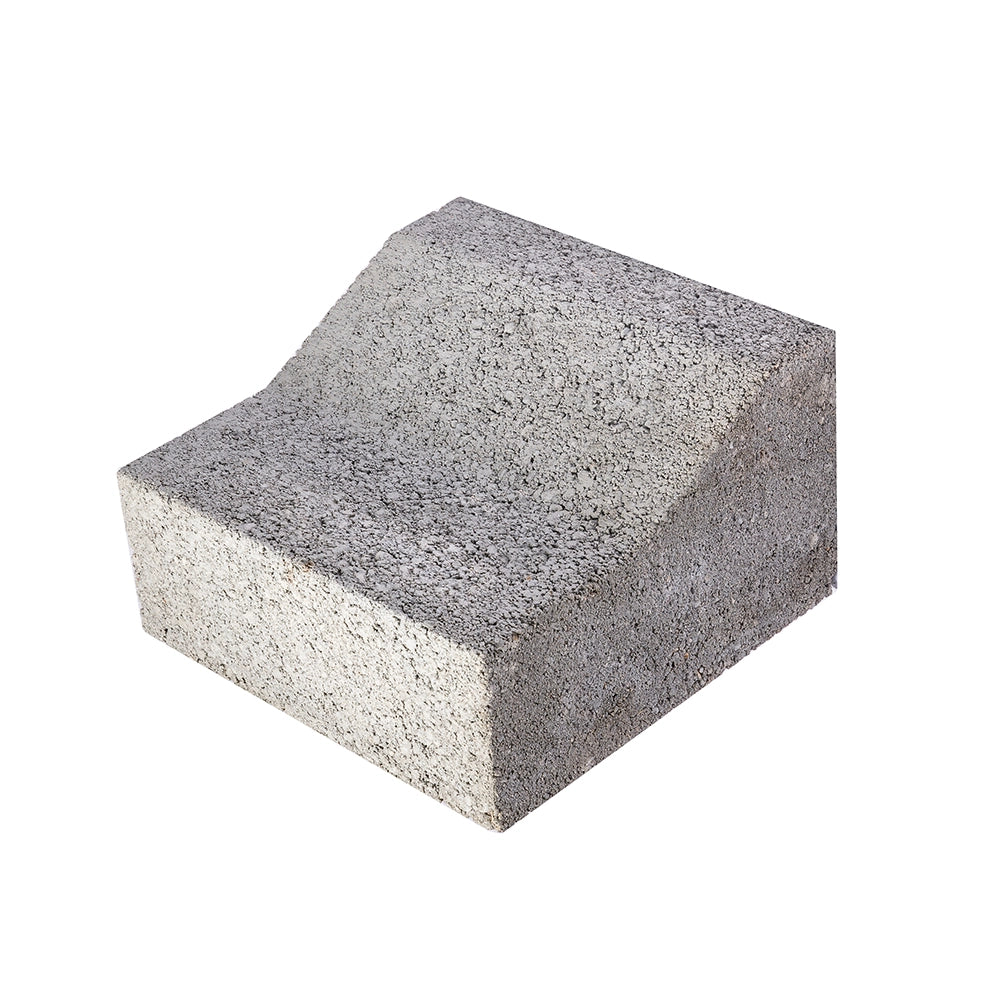

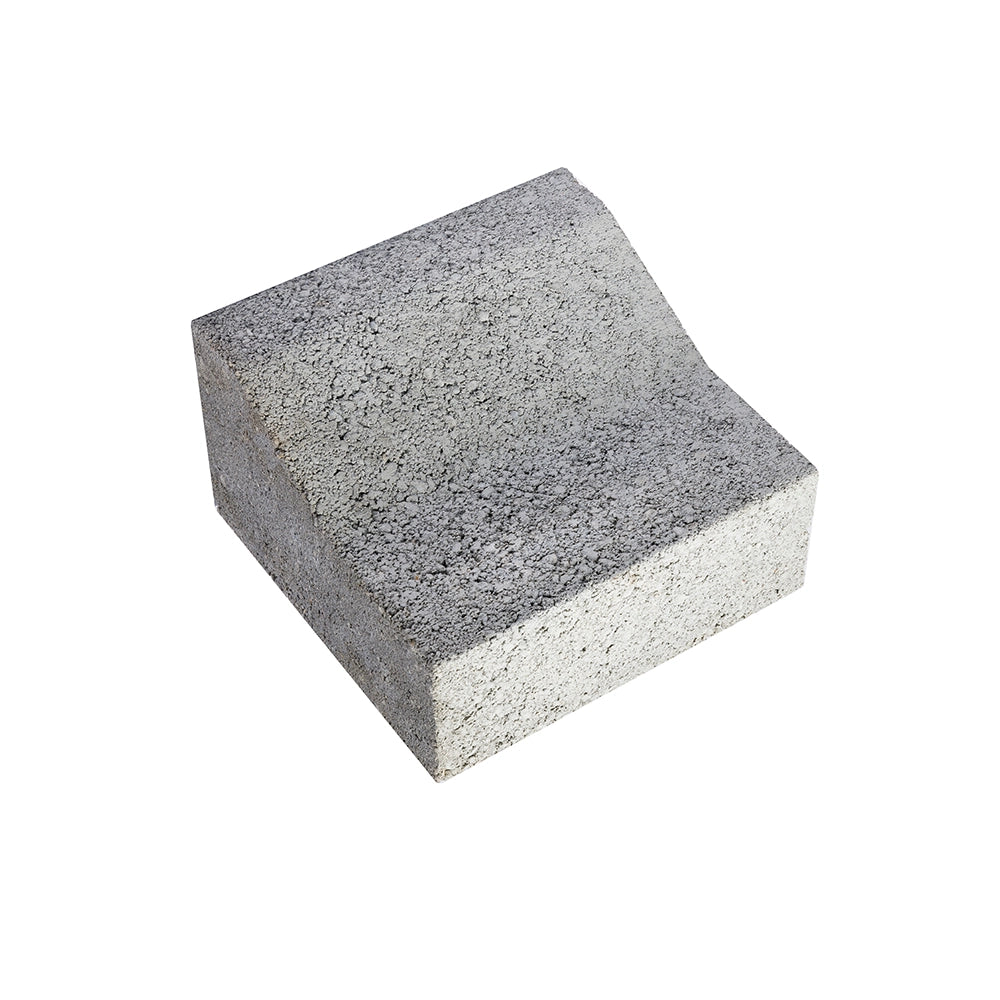

Concrete Kerb K 25x15/10x25 cm - Leier

Short description

Short tapered kerb, 25 cm long. Four pieces per linear metre, which makes it the piece for curves and tight radii.

Full description

The short length follows a curve without cutting. Used at roundabouts, kerb returns and islands where a 50 cm kerb would have to be sawn.

Produced by Leier from vibro-pressed concrete, the same material and the same colour range as the Leier paving, so kerb and paving can be matched in one project.

Key benefits

• Vibro-pressed concrete for roads and vehicle traffic
• Short length follows curves without cutting
• Frost and de-icing salt resistant, tested to EN 1340
• Set on a concrete foundation with a rear haunch
• Defines the carriageway edge and protects the pavement structure
• Compatible with the full Leier kerb and paving range

Technical specifications

• Product type: precast concrete kerb
• Brand: Leier
• Model: EBB K 25x15/10x25
• Material: vibro-pressed concrete
• Dimensions: 250 × 150/100 × 250 mm
• Pieces per linear metre: 4
• Pallet quantity: 72 pieces/pallet
• Pallets per truck: 21
• Colours: Grey
• Use: outdoor, ground level
• Sold by: piece
• Delivery: made to order, subject to supplier stock

Recommendation

Kerbs are laid on a concrete foundation of at least C16/20, with a rear haunch on the outer face. Leave a 3–5 mm joint between pieces and fill it with mortar. Set the kerb line and level before laying the paving, so the paved surface can be closed against a fixed edge. Order about 5% over the measured length, for cuts at corners and for spares.
